BioMPI&CoreMPI Benchtop Magnetic Particle Imaging System-Worldwide Technology (S.H)

BioMPI&CoreMPI Benchtop Magnetic Particle Imaging System

You Are Here ：HOME > PRODUCTS > BioMPI&CoreMPI Benchtop Magnetic Particle Imaging System >

BioMPI&CoreMPI Benchtop Magnetic Particle Imaging System
description：	The bioMPI is a revolutionary benchtop Magnetic Particle Imaging system, designed for cutting-edge preclinical research. By directly detecting the spatial distribution of superparamagnetic nanoparticles, it enables 3D dynamic imaging with zero background

Summarize
The bioMPI is a revolutionary benchtop Magnetic Particle Imaging system, designed for cutting-edge preclinical research. By directly detecting the spatial distribution of superparamagnetic nanoparticles, it enables 3D dynamic imaging with zero background interference, offering a new tool of insight for life science research.
The coreMPI is a benchtop system for magnetic nanoparticle characterization and imaging. It serves as an ideal teaching tool and a powerful platform for nanoparticle characterization, method development, and introductory MPI research.

Advantage：
• Core Technology & Flexibility: Both products adopt an innovative all-electronic Field-Free Line (FFL) coding scheme, supporting flexible imaging sequences, ensuring high performance and research freedom.
• High-Speed Real-Time Imaging/High-speed Real-time Imaging: Both feature an astonishing imaging speed of up to 50 volumes per second, capable of capturing the dynamic process of nanoparticle distribution.
• Benchtop Integrated Design: The compact benchtop design saves valuable laboratory space, simplifies the installation process, and significantly reduces the total cost of ownership for users.
• Powerful Software Ecosystem: Standard with the comprehensive and user-friendly OctoView software, it offers an integrated workflow from data collection, processing, reconstruction to visualization

Key feature：

Application
• Nanomedicine Research: Evaluation of the targeting and enrichment efficiency of novel nano-drugs.
• Method Development: Development and testing of new MPI imaging sequences and reconstruction algorithms.
Unique to bioMPI:
• Cardiovascular Research: Real-time hemodynamic and perfusion imaging.
• Oncology Research: Targeted delivery and efficacy assessment of nano-drugs.
• Cell & Immunotherapy: In vivo cell tracking and migration studies.
• Neuroscience: Visualization of blood-brain barrier opening and drug delivery.
• Tracer Performance: One-time acquisition of the point spread function (PSF) and hysteresis loop of nanoparticles for tracer screening and optimization.
• Education & Training: As a teaching tool for universities and research institutes, for MPI principle teaching and practice.

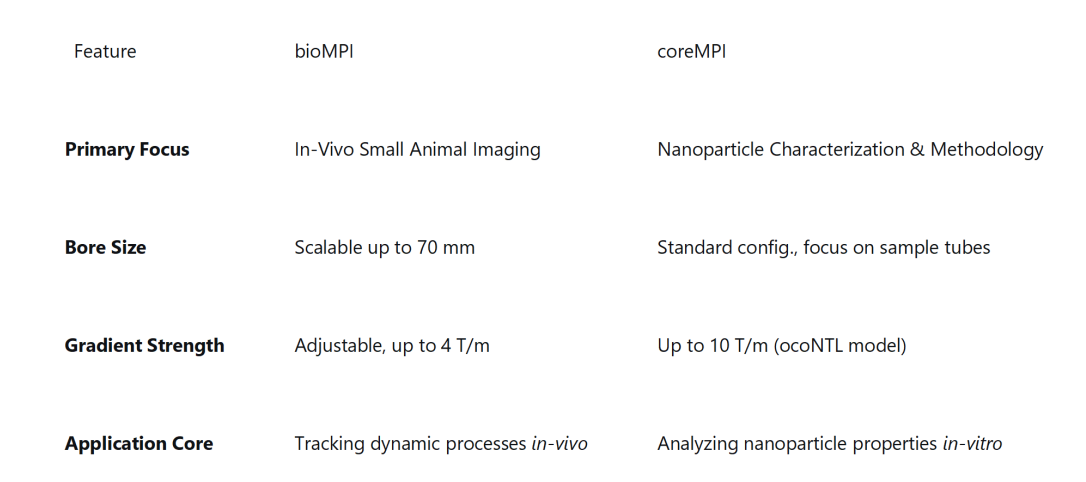

Detailed Specifications

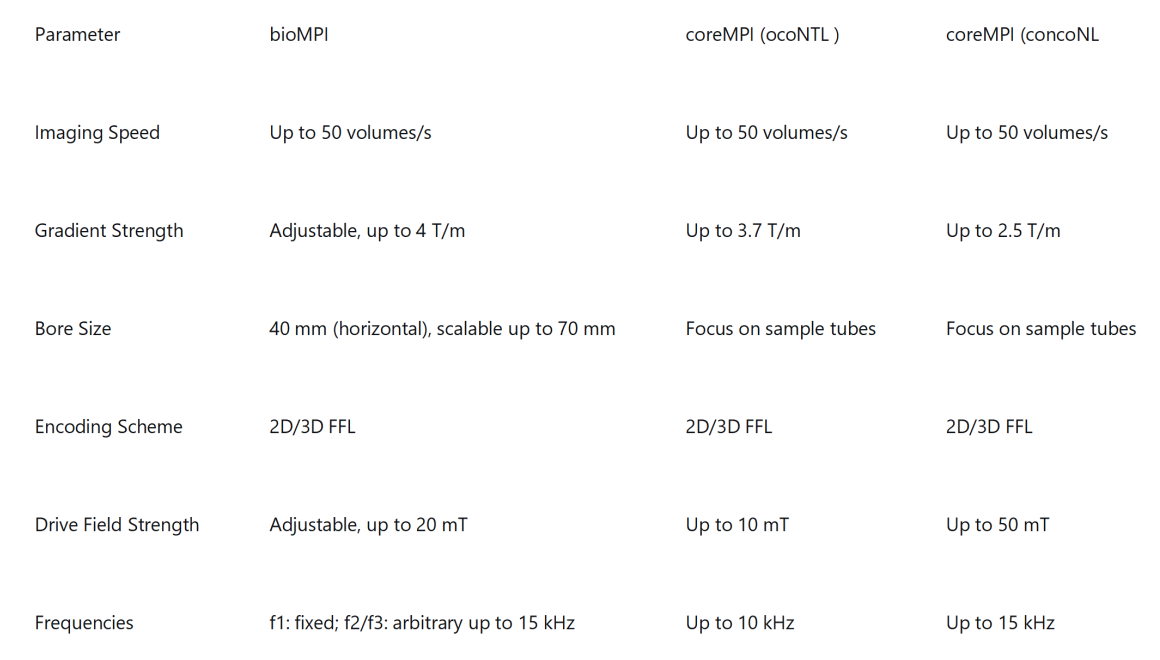

Technical Parameters
